AquaClarity Cartridge Filter
More images
AquaClarity

AquaClarity Cartridge Filter

Trade customers: see your pricing in the Aqua Clear trade portal. Not a trade customer? Use Enquire / Get a quote below.

Features and benefits

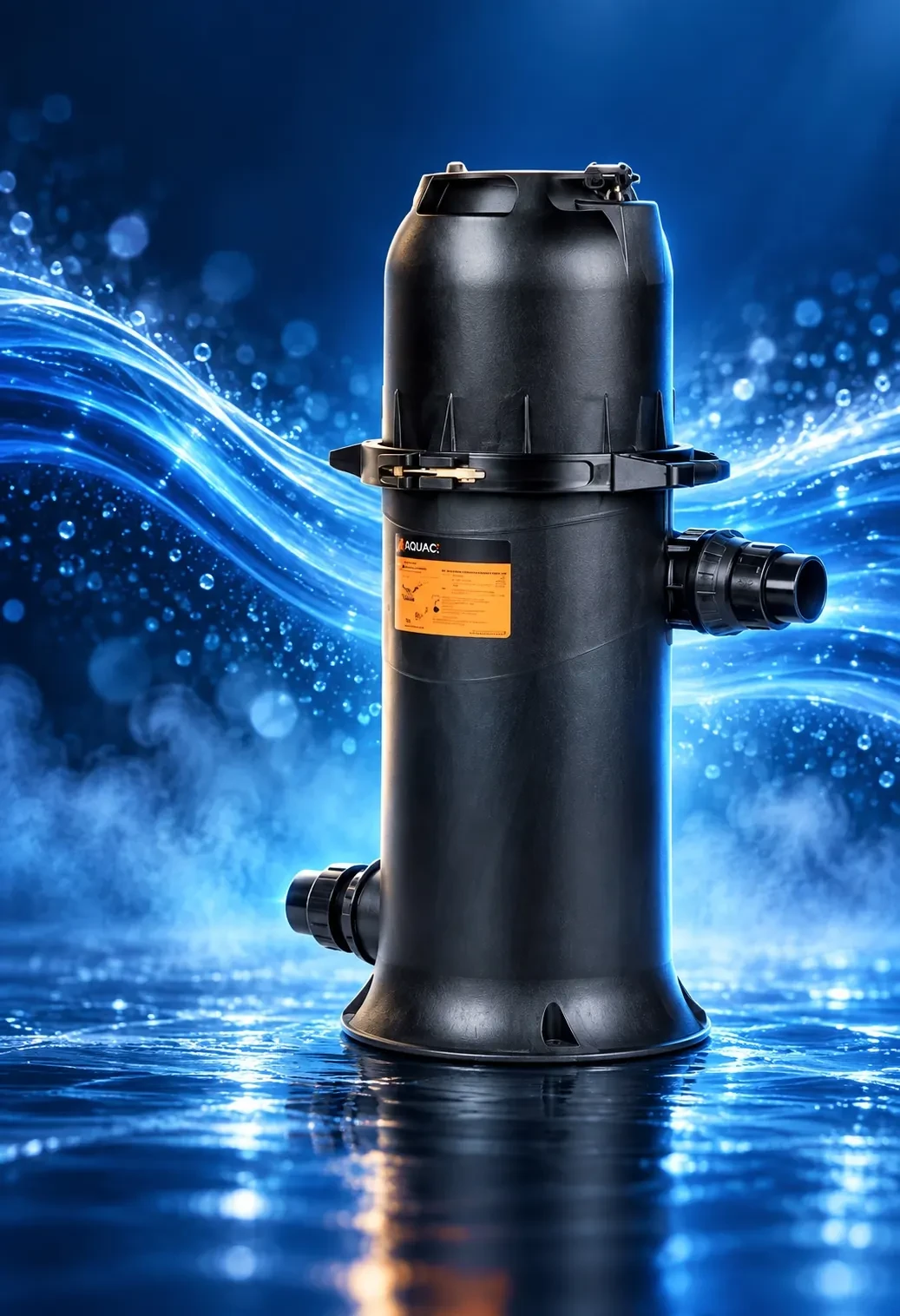

AquaClarity Cartridge Filter

Fine filtration. Simple maintenance.

AquaClarity Cartridge filters are compact single-cartridge pool filters designed for domestic pools with fresh or salt water. Fine filtration, easy cleaning and no backwashing make AquaClarity Cartridge an efficient, low-maintenance alternative for modern filtration systems.

Key Features

Fine cartridge filtration

Captures fine debris for sparkling pool water.

Simple maintenance

The single filter element is easy to remove, hose clean and reinstall.

No backwashing

Saves water, heating and chemicals compared with backwash systems.

Compact footprint

Excellent hydraulics and low head loss in a space-efficient design.

Outdoor ready

Weather-resistant tank suitable for fresh or salt water domestic pools.

Technical specifications

ModelGL100SGL150SGL200S
Filter area (m²)9.31418.6
Filter area (ft²)100150200
Connection size1.5"/2" (50(48) / 63(60) mm)1.5"/2" (50(48) / 63(60) mm)1.5"/2" (50(48) / 63(60) mm)
Flow rate – filtration speed 11.2 m/h · 190 lpm · 11.4 m³/h1.2 m/h · 280 lpm · 16.8 m³/h1.2 m/h · 371.7 lpm · 22.3 m³/h
Flow rate – filtration speed 22.1 m/h · 333.4 lpm · 20 m³/h1.8 m/h · 416.8 lpm · 25 m³/h1.6 m/h · 500.1 lpm · 30 m³/h
Max. working pressure3 bar3 bar3 bar
Height A (mm)769861988
Base ØB / C / D (mm)317 / 93 / 353317 / 93 / 353317 / 93 / 353
Footprint G × H (mm)537 × 469537 × 469537 × 469
Bottom mounting ØI / 4-ØJ (mm)338 / 7.5338 / 7.5338 / 7.5

Single-cartridge design for domestic swimming pools. Flow rate is determined by the pump size and the piping system. Dimensions are a representative manufacturer reference.

Frequently asked questions

Do I need to backwash it?

No. The cartridge is removed and hose cleaned instead, which saves water, heating and chemicals compared with backwash systems.

Is it suitable for salt water pools?

Yes. It’s designed for domestic pools with fresh or salt water.

Which size do I need?

There are three models, GL100S, GL150S and GL200S (100, 150 and 200 ft² filter area). The flow rate depends on your pump size and piping, so call 09 273 4103 for help choosing.

Need help choosing the right model?

Call our team on 09 273 4103 or use the enquiry button above.

Pool builder, shop or service company?

Open an Aqua Clear trade account for wholesale pricing, stock availability and technical support.
