Hide Drain Covers

Features and benefits

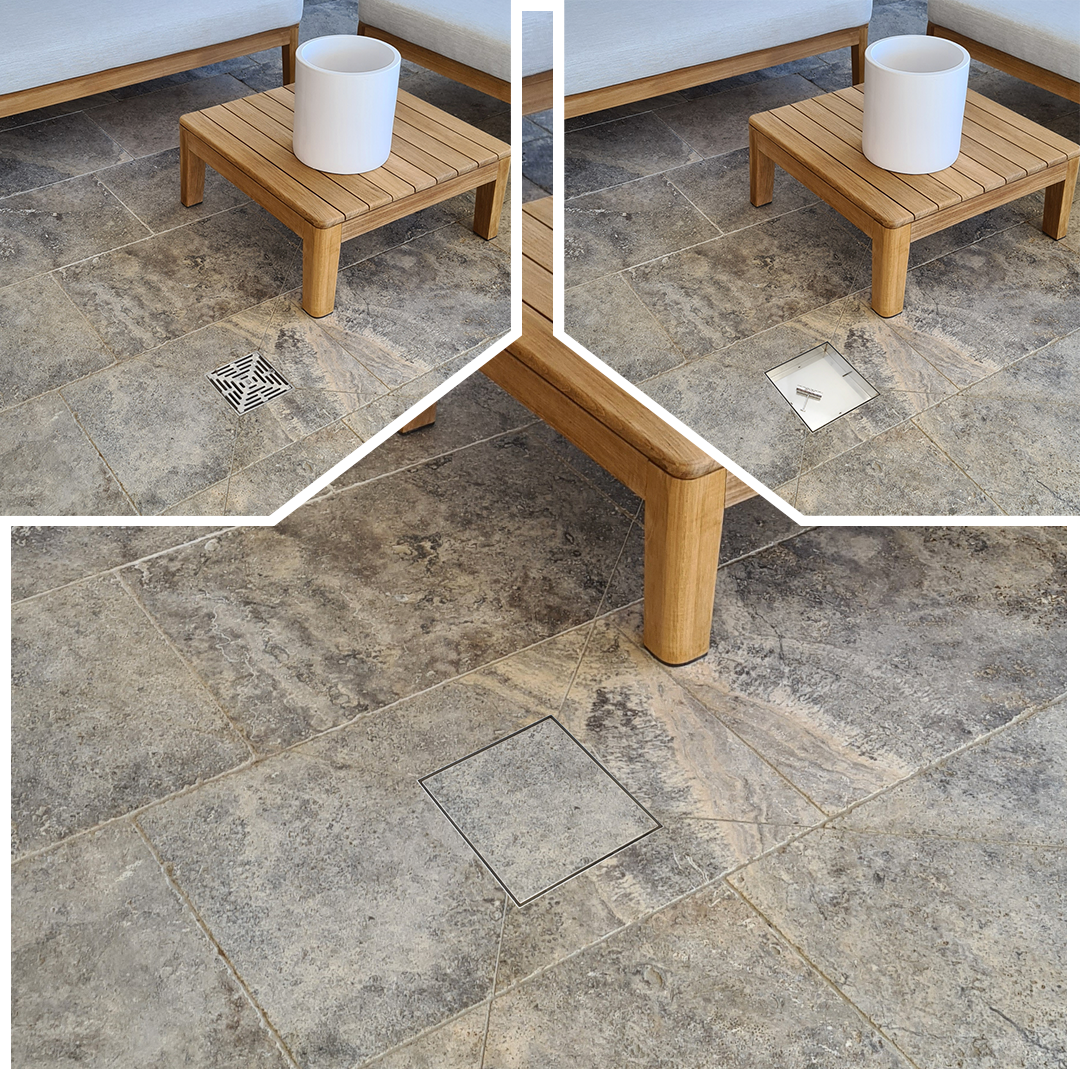

Conceal Unsightly Drain Grates — Seamlessly

HIDE Drain Cover Kits replace dated plastic drain covers and coarse metal grates with a premium, flush-finish inlay lid that blends perfectly into your chosen surface. Made from marine grade 316L stainless steel and filled with your choice of matching tile, stone, pavers, concrete or decking, the cover simply disappears into your pool deck, patio or landscape — no more industrial eyesores stamping your outdoor design.

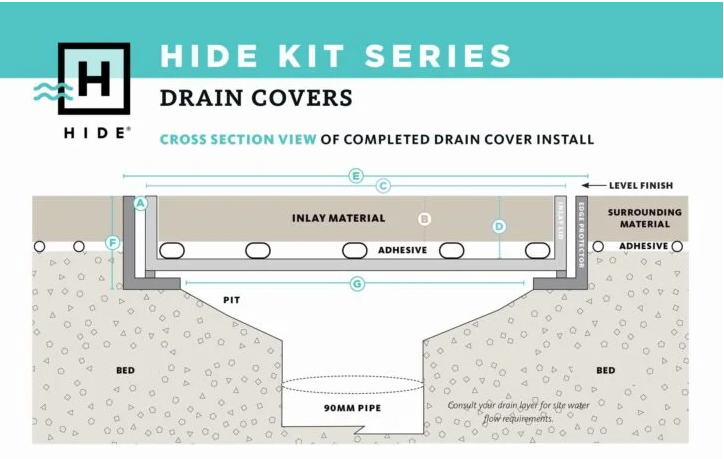

Designed for installation in pedestrian alfresco areas and suited to a mortar gradient to the pipe, HIDE drain covers are available in four sizes with multiple depths to accommodate any type of inlay. Please note: the drain and pit are not included — these are cover kits only, installed on-site over your drainage pipe.

Why Choose a HIDE Drain Cover?

• Seamless, designer finish — the inlay tray holds the same tile, paver, stone, concrete or decking as your surrounds, creating a flush surface with no visible grate.
• Safe, key-only access — the cover can only be opened with the HIDE Safety Key, keeping children and pets out, and sits flush to eliminate trip hazards in pedestrian areas.
• Built to last — marine grade 316L stainless steel backed by a 20 year warranty covering the Safety Key, Inlay Lid and Edge Protector.
• Protects your landscape — the stainless steel edge protector prevents chips and breakages in tiled or stone surrounds every time the cover is opened and closed.
• Set-and-forget — occasional maintenance only, at little to no cost, unlike cheap plastic grates that crack and need regular replacement.

Choosing the Right Size & Depth

Four drain cover sizes are available, each in a range of depths to suit your inlay material:

• 214mm square — 10, 20, 30 & 40mm depths
• 314mm square — 10, 20, 30, 40, 50 & 60mm depths
• 342mm square — 10, 20, 30 & 40mm depths

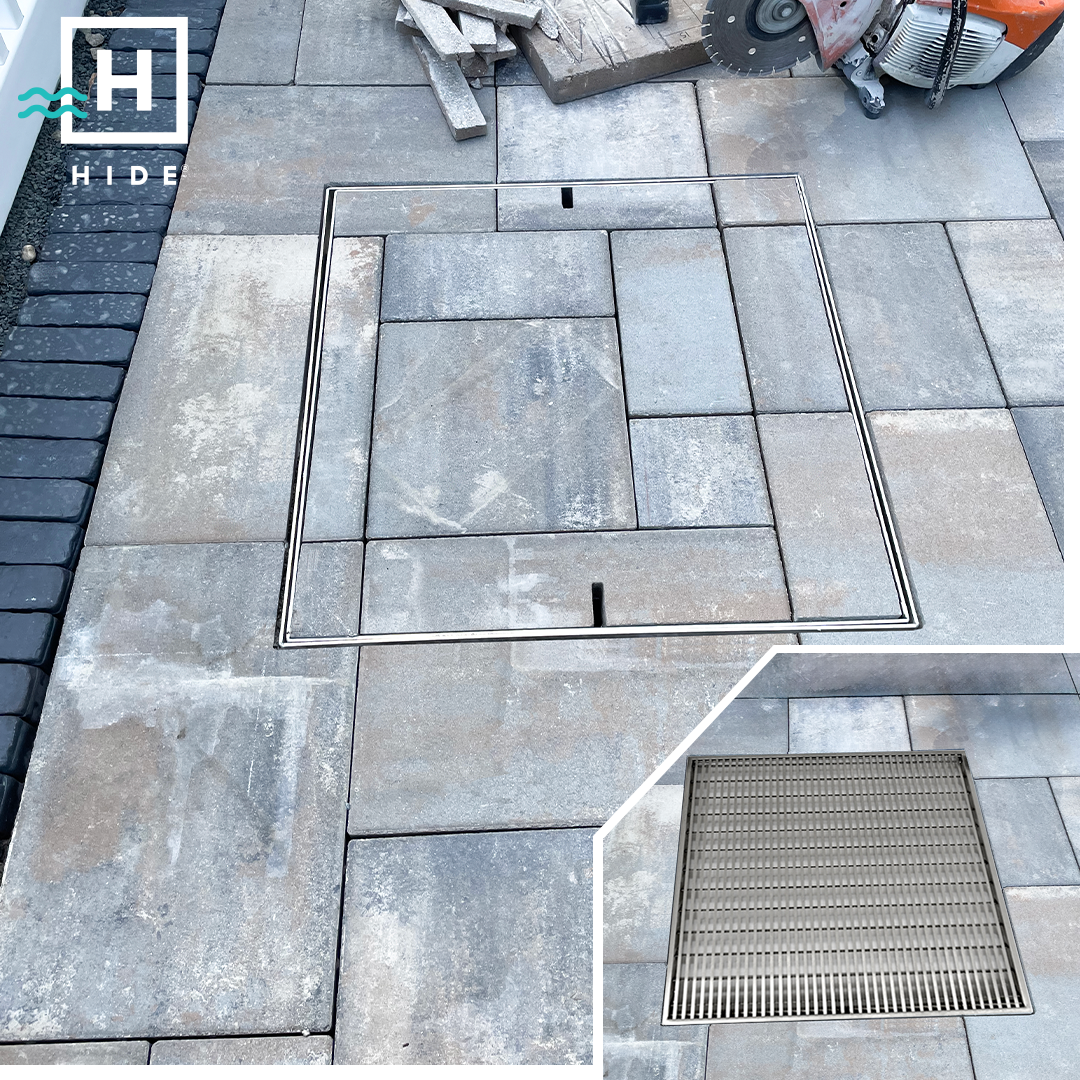

• 656mm square — 20mm depth
• Concrete models (40mm depth) available in 214, 314 & 342mm

Two quick measurements are all it takes: the clear underside opening you need to cover, and the thickness of your inlay material. If your cover will sit within 1.25m of the pool edge, the stainless steel should be earthed — check with your licensed electrician. For drainage volume planning, a drain cover flow rate guide is available at skimmerlids.com.au. Not sure which kit you need? Contact our team with your measurements and we'll recommend the right one.

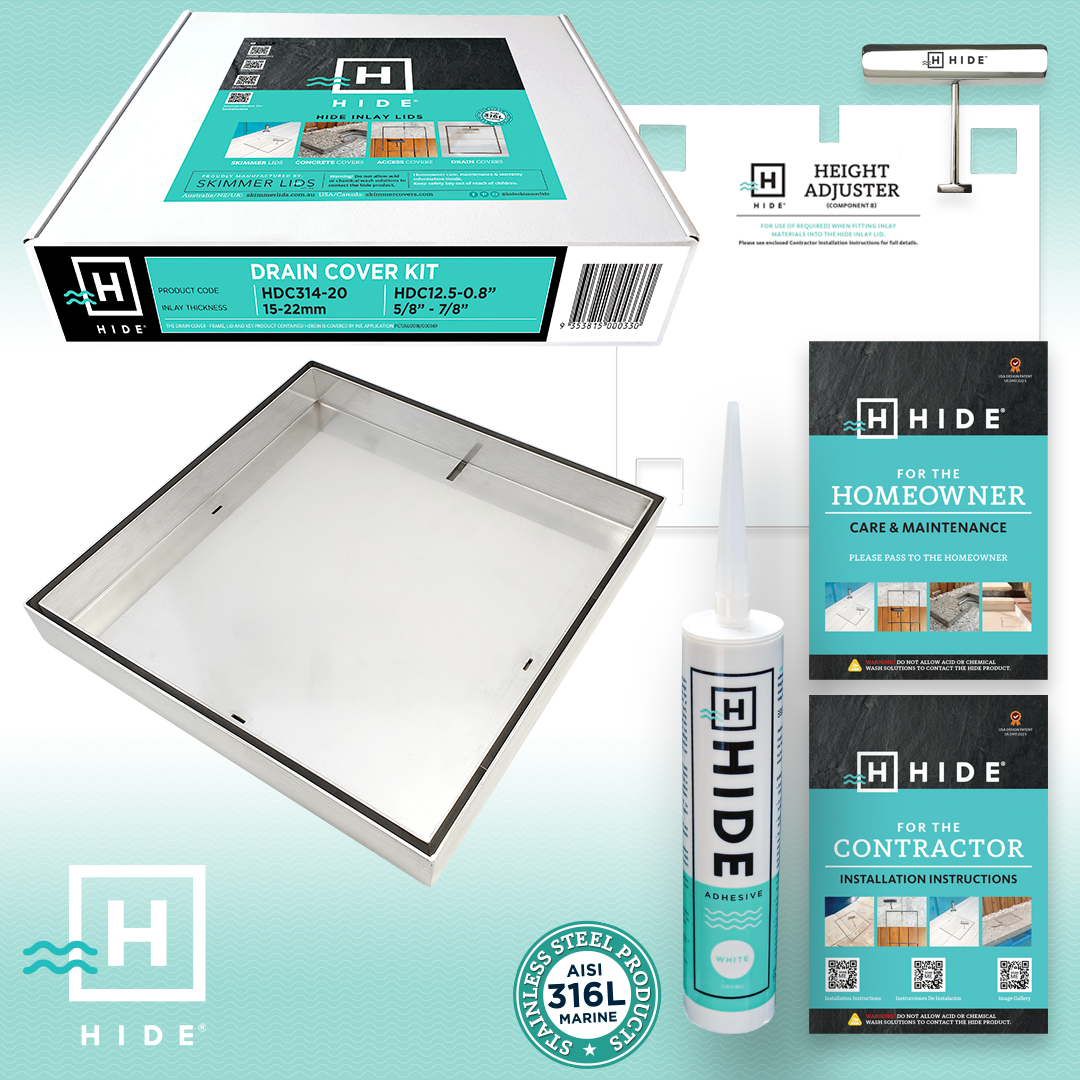

What's Included in Every HIDE Drain Cover Kit?

• HIDE Safety Key — a stainless steel tool to safely and easily open and close the installed cover.
• HIDE Inlay Lid — a 316 stainless steel tray that holds the landscape materials of your choice.
• HIDE Edge Protector — a stainless steel frame set into a recess in the landscaped area, protecting your paving and surrounds from chipping or breakage.
• HIDE Adhesive & documentation — plus contractor installation instructions, home owner information and warranty.

HIDE Drain Covers — FAQs

Order HIDE Drain Covers from Aqua Clear

Complete the seamless look of your next pool or landscaping project. More product details, sizing tables, the drain cover flow rate guide, brochures and technical videos can be found at www.skimmerlids.com.au, or talk to our knowledgeable team about the right kit for your project.
