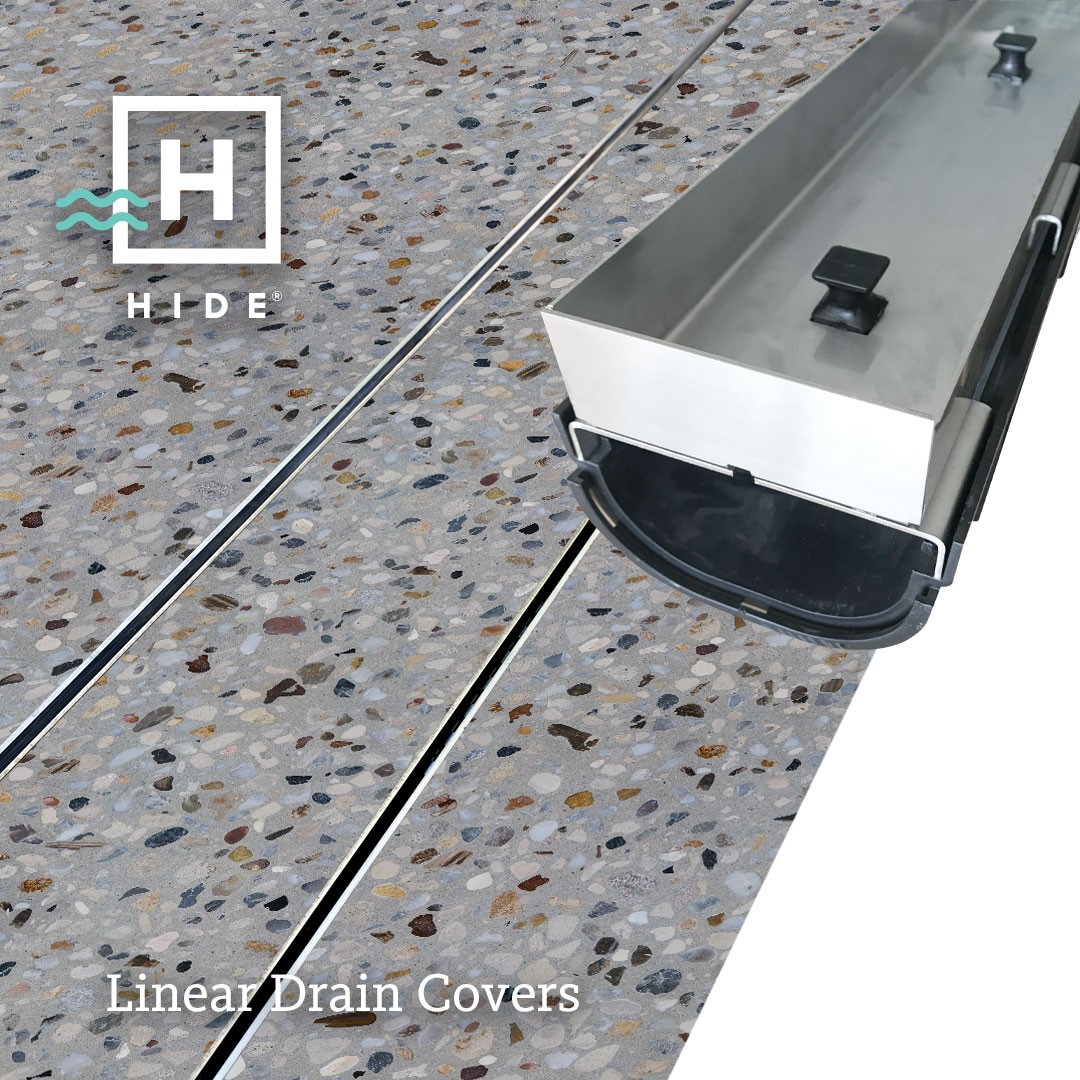

Hide Linear Drain Cover | Poured Concrete

Features and benefits

Premium Strip Drainage, Finished in Poured Concrete

HIDE Linear Drain Covers (also known as strip drains, channel drains or trench drains) deliver premium outdoor drainage for landscaping and pool areas — with a clean, seamless finish and no visible drain grate. The poured concrete model is designed to be filled in-situ with wet-pour concrete, allowing the drainage line to blend invisibly into concrete driveways, patios, pool surrounds and paved areas.

Why Choose a HIDE Poured Concrete Linear Drain Cover?

• Seamless, designer finish — filled with wet-pour concrete to match your slab or paved surround, so the strip drain becomes invisible in the landscape.
• Built for concrete surrounds — the dedicated concrete infill model suits the common 40mm depth, making it the perfect partner for concrete pool surrounds, driveways and entertaining areas.
• Smart 1210mm set-out — supplied in easily removed modular lengths that are easy to trim on-site (a stainless steel cutting disc is included) for a perfect fit, including irregular edges.
• Adjustable height & clearances — centralising tabs (a world-first in design) allow up to 10mm height adjustment, with level adjusters and adhesive included to secure components.
• No equipotential bonding required — simplifying installation around pools.
• Built to last — 316 marine grade stainless steel backed by a 20 year warranty.
• Flexible layout options — prefabricated 90° mitred corner kits, optional stainless tile edge trims, and easily removable modular lengths for maintenance access.

Channel Compatibility & Set-Out

• 125mm width suits Everhard Easy Drain (ED) channels
• Set the channel at slab level (tile-fixing height) so the HIDE cover sits flush with the finished concrete surface — the cover sits above the channel

Please note: the plastic drain channel (Everhard Easy Drain) is not supplied with the HIDE kit — purchase it separately and install according to the manufacturer's instructions. Confirm with your concrete contractor or pool builder that they understand the installation method and required set-out height before fixing the channel.

What's Included in the HIDE Linear Drain System?

Linear Lid Kit (per 1210mm length)

• 1 × linear lid 1210mm
• 5 × linear bridges
• 5 × height/level levellers
• 2 × adhesive

Mitred Corner Kit (optional)

• 1 × left-hand and 1 × right-hand mitred corner lid
• 8 × linear bridges & levellers, 1 × corner bridge & leveller
• 4 × adhesive

Finishing Kit (one per project)

• 1 × access key / tab key
• 2 × end caps to finish both ends of the completed channel cover
• 1 × stainless steel cutting disc

Tip: you only need one key hole per multi-length drain run — the remaining covers can be lifted once the first length is removed.

HIDE Poured Concrete Linear Drain Covers — FAQs

Order HIDE Linear Drain Covers from Aqua Clear

Achieve premium strip drainage without a visible grate. More product details, the brochure, installation guides and videos can be found at www.skimmerlids.com.au, or talk to our knowledgeable team about the right configuration for your project.
